Fan, Filtration and Control in One Equipment Package

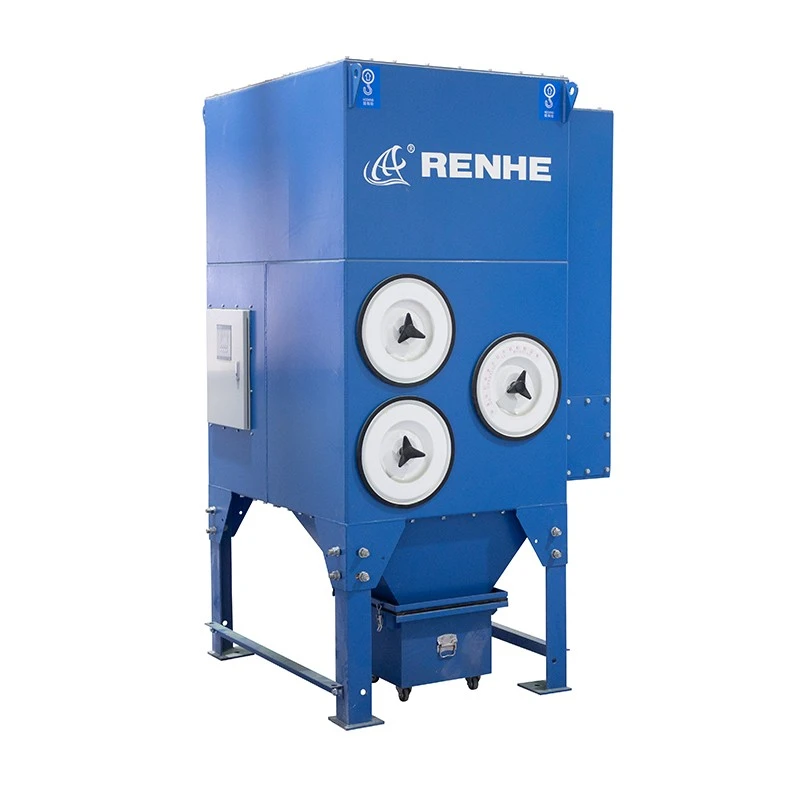

Metal cutting and welding workshops often need several functional components before a dust collection system can operate. The RH/XE Integrated Cartridge Dust Collector combines the filtration section, fan section and control section within one machine, reducing the need to arrange these major components separately on site.
The series is mainly designed for dust and fumes generated during laser cutting, metal welding and metal grinding. Standard configuration includes a 380/50/3 motor fan, an air inlet with a spark-catching device, and an internal fan and pulse-control electrical box. This integrated arrangement can simplify equipment combination and installation for workshops that want a more concentrated dust collection configuration.
Downflow Filtration with Side Cartridge Access

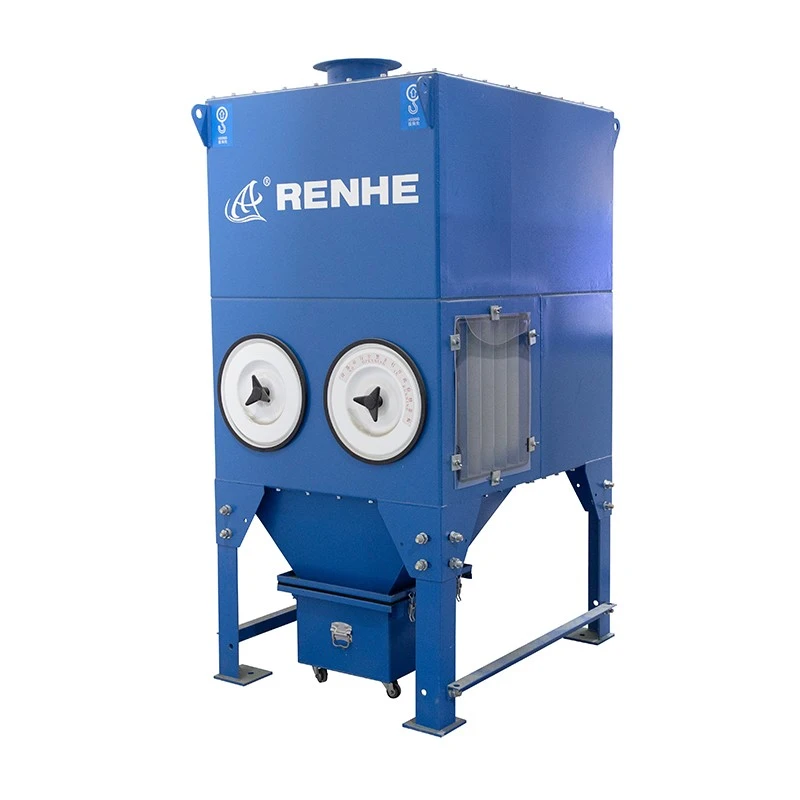

The RH/XE uses horizontally installed filter cartridges together with a downflow airflow structure. Cartridges can be removed and serviced from the side, avoiding unnecessary access into the main housing during routine replacement.
A quick-connect dust collection barrel is provided for daily dust removal. At the inlet, the built-in spark-catching structure provides front-end treatment for sparks generated during cutting, welding and grinding operations. Different inlet directions are available to suit workshop duct arrangements and existing extraction pipelines.
The RH/T-P differential-pressure cleaning controller supports multiple cleaning functions and communication functions. It can also work together with other equipment in the system for linked operation. Depending on the dust characteristics, membrane flame-retardant or nano flame-retardant filter media can be selected.
Seven Capacity Options for Different Metalworking Areas
The series begins with the RH/XE-3, rated at 2,000–3,000 m³/h, and extends to the RH/XE-24 at 15,000–18,000 m³/h. Filtration area ranges from 60 to 480 m². Available configurations use 3 to 24 cartridges, while motor power ranges from 4 kW to 18.5/22 kW.
Smaller models can be considered for a single laser cutting machine or a small welding station. Larger models such as RH/XE-12, RH/XE-18 and RH/XE-24 are intended for areas with multiple work positions or production lines requiring higher centralized airflow.
An Integrated Cartridge Dust Collector should therefore be selected after confirming the number of processing machines, the locations where fumes are generated, duct length, required airflow and available installation space. These factors help match the filtration area, fan capacity and equipment size to the actual workshop layout.
Technical Coordination Before and During Production
The technical and production teams can support equipment selection according to actual operating conditions and provide coordination for general assembly drawings and electrical control. Customized configurations can be adjusted according to technical drawings or site conditions.
During manufacturing, buyers can receive updates covering housing fabrication, assembly, electrical wiring and complete-machine testing. The equipment is inspected before packing.
Under normal operating conditions, the dust collector carries a one-year warranty. The source gives an approximate standard production period of 25 days for equipment without a fan and 55 days for equipment with a fan. Customized dust collectors require approximately 10 additional days for drawing preparation.
For metalworking plants that want to combine fume capture, cartridge filtration, pulse cleaning, fan operation and control in a single equipment arrangement, the RH/XE series provides multiple airflow and filtration-area choices without requiring these major functional units to be purchased as separate machines.
|
Model |
Air handling capacity(m³/h) |
Filtration area(m²) |
Number of filter cartridges |
Motor power(KW) |
weight(Kg) |
Overall dimensions(mm) |
|
RH/XE-3 |
2000-3000 |
60 |
3 |
4 |
600 |
1290×1290×2465 |
|
RH/XE-4 |
3000-4500 |
80 |
4 |
5.5 |
650 |
1350×1290×2465 |
|
RH/XE-6 |
5000-6500 |
120 |
6 |
7.5 |
730 |
1430×1290×2922 |
|
RH/XE-8 |
6500-8000 |
160 |
8 |
11 |
900 |
1532×2206×3217 |
|
RH/XE-12 |
8000-9500 |
240 |
12 |
11 |
1150 |
1582×2206×3674 |
|
RH/XE-18 |
12000-14000 |
360 |
18 |
15 |
1750 |
2190×2206×3773 |
|
RH/XE-24 |
15000-18000 |
480 |
24 |
18.5/22 |
2000 |
2240×2206×4230 |
