Horizontal Cartridge Layout for Space-Sensitive Projects

The RH/XLC-II Horizontal Cartridge Dust Collector uses horizontally installed filter cartridges with a pulse-jet cleaning system. This arrangement is designed for industrial dust collection projects where airflow capacity, installation space and possible future expansion all need to be considered.

Dust-laden air enters the housing and passes through the cartridge filtration section. Dust is retained on the filter media while cleaned air leaves the unit. When accumulated dust reaches the cleaning condition, the pulse system sends reverse compressed air through the cartridges. The dust is released from the filter surface and falls into the hopper.

Cleaning can be controlled by time or differential pressure. This allows the cleaning cycle to respond to actual dust loading instead of operating continuously when it is not required. The listed initial resistance is 120–250 Pa, normal operating resistance is 500–700 Pa, and final resistance is 1000–1250 Pa. The product information gives a dust collection efficiency of 99.99%.

Modular Design for New Systems and Equipment Upgrades

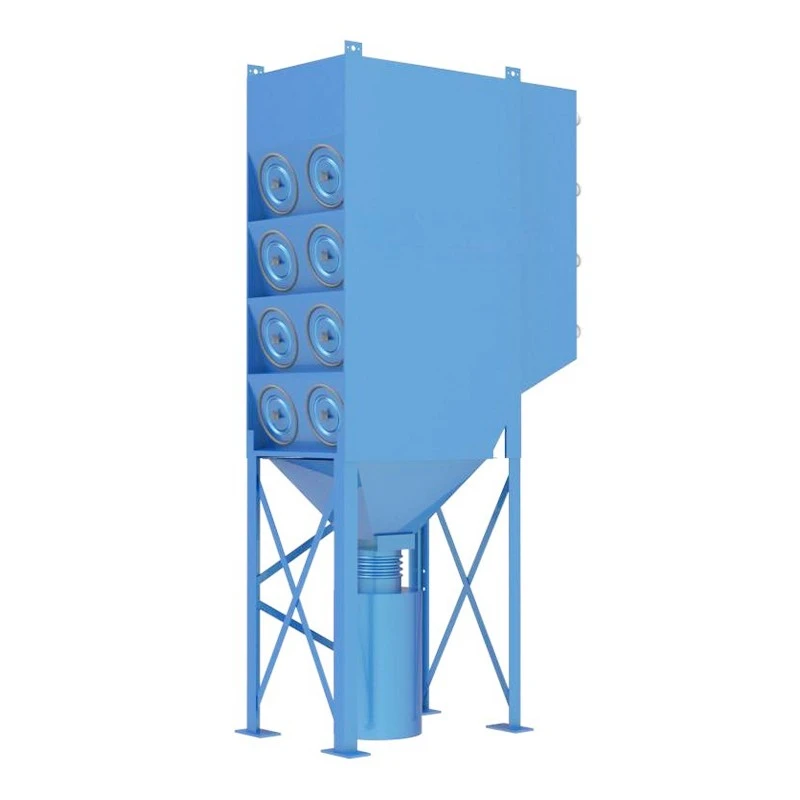

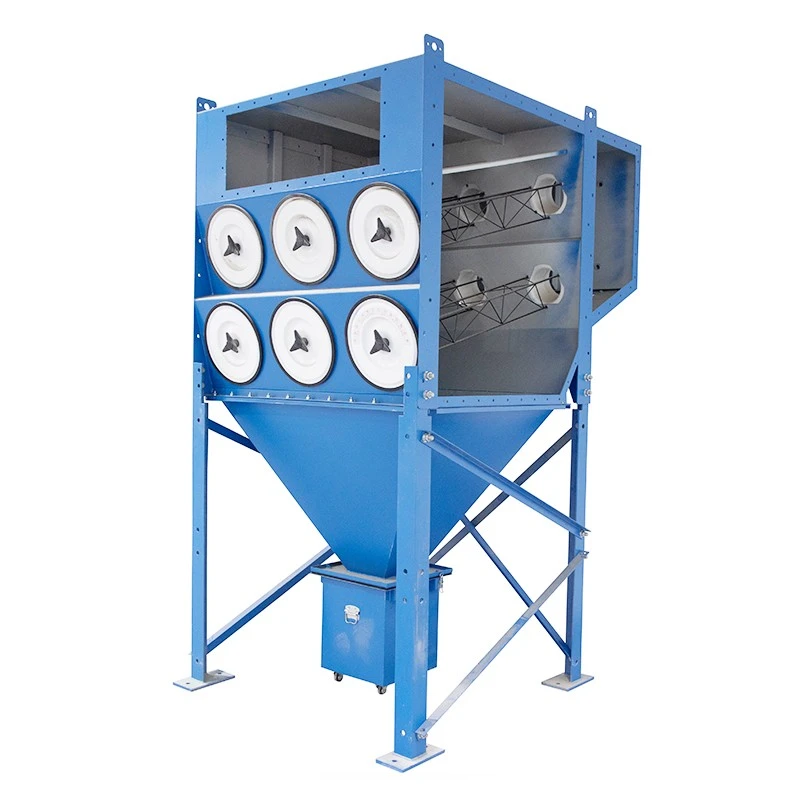

Unlike a traditional vertical cartridge layout, the RH/XLC-II places its cartridges horizontally inside the housing. This can reduce the equipment footprint and allows cartridge maintenance from the side of the unit.

The modular construction also gives project engineers more flexibility when planning system capacity. Different modules can be combined according to airflow requirements, and the system can be expanded later when operating requirements change. This makes the equipment suitable both for new dust collection installations and for upgrading older baghouse or electrostatic dust collection systems.

The available series covers airflow ranges from 3,300–7,500 m³/h up to 20,000–45,000 m³/h. Filtration area extends from 184 to 1,472 m², with configurations using 8 to 64 cartridges. Applications listed in the source include cement, metallurgy, thermal power, aluminum, chemicals, dyes, petrochemicals, electronics, fine chemicals, pharmaceuticals and production environments with high dust concentrations.

Project Selection Based on Real Operating Conditions

A Horizontal Cartridge Dust Collector should not be selected by airflow alone. Dust properties, available installation space, duct conditions and operating resistance also need to be considered. The technical team can review customer information such as airflow, dust type, temperature, humidity, plant dimensions, installation area and voltage before recommending a configuration.

The company has worked in the air filtration field since 2004, with activities covering filter media development, product design, dust collection processes and related equipment. Custom equipment can also be produced according to technical drawings or an existing prototype. This is particularly useful for projects with limited floor space, retrofit requirements or plans for later capacity expansion.

Inspection, Production and Delivery Support

The minimum order quantity for dust collectors is 1 unit, and OEM/ODM projects are supported. Photos or videos can be provided during production so the buyer can follow manufacturing progress. Before packing, the complete equipment receives a 100% inspection, and third-party inspection is accepted.

Standard production time is approximately 25 days without a fan and approximately 55 days with a fan. Customized equipment requires about 10 additional days for drawing preparation. Packaging can use cartons with three-plywood pallets or wooden cases according to transportation requirements.

Under normal operating conditions, the dust collector is covered by a one-year warranty. Installation documents, remote technical guidance and troubleshooting support can also be provided after delivery.

Product Specifications

Model	Air handling capacity(m³/h)	Filtration area(m²)	Number of filter cartridges	Running resistance(Pa)	Dust removal efficiency	Overall dimensions(mm)
RH/XLC 2-8 II	3300-7500	184	8	Initial resistance 120-250 Normal operating resistance 500-700 Final resistance 1000-1250	99.99%	1016×2159×3175
RH/XLC 3-12 II	5000-11250	276	12			1016×2159×3632
RH/XLC 4-16 II	6600-15000	368	16			1016×2159×4115
RH/XLC 3-24 II	10000-22000	552	24			2032×2159×3632
RH/XLC 4-32 II	13500-30000	736	32			2032×2159×4115
RH/XLC 3-36 II	15000-33500	828	36			3048×2159×3632
RH/XLC 3-48 II	20000-45000	1104	48			4064×2159×3632
RH/XLC 4-48 II	20000-45000	1104	48			3048×2159×4115
RH/XLC 4-64 II	20000-45000	1472	64			4064×2159×4115
