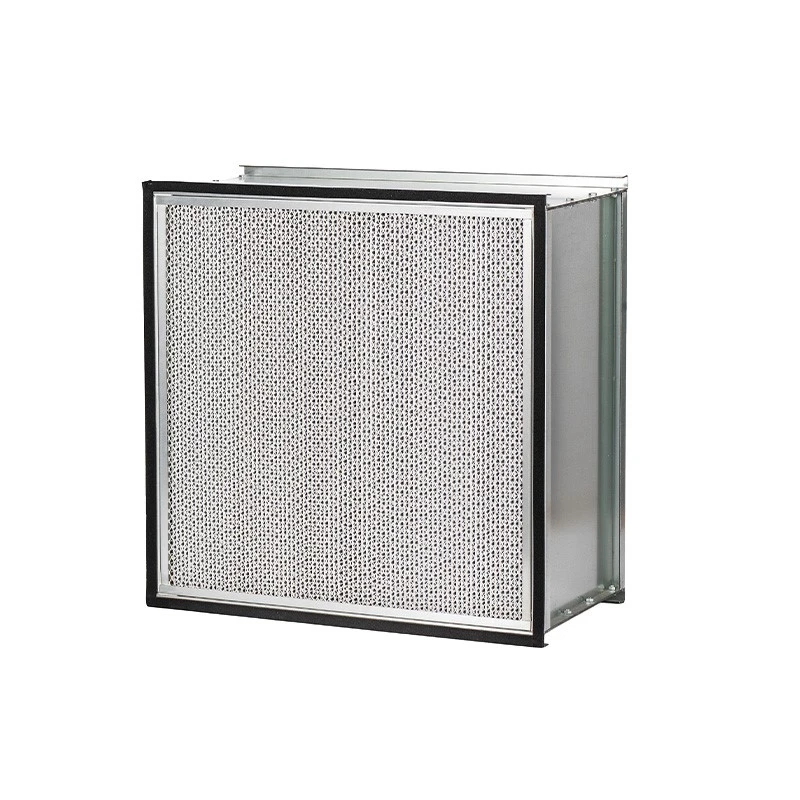

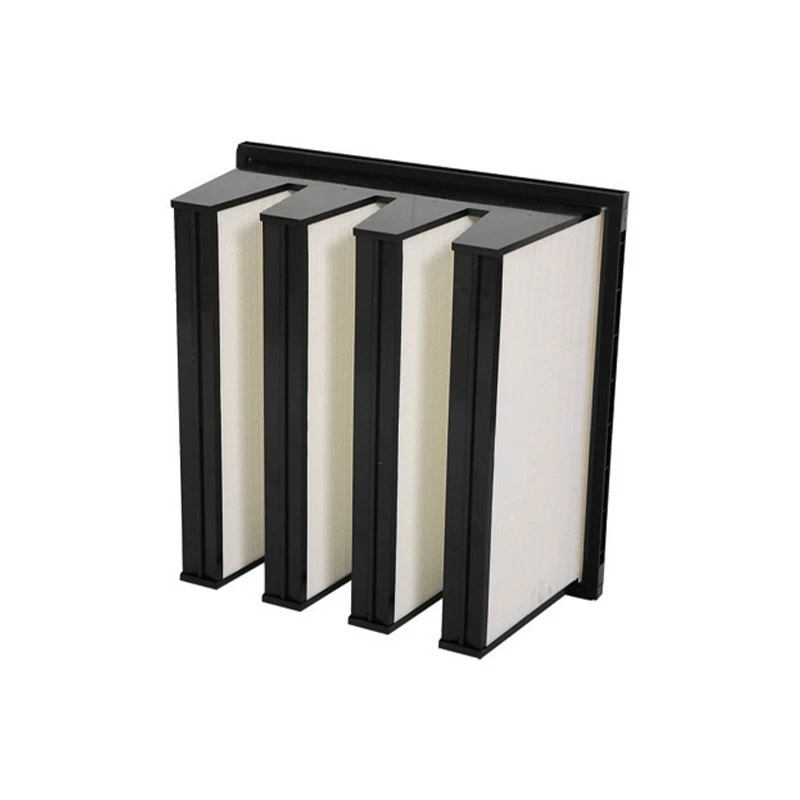

High Efficiency Inlet Air Filter

The High Efficiency Inlet Air Filter is mainly used in the high-efficiency or final filtration stage of gas turbine intake systems. Its role is to further capture fine and submicron particles that remain after upstream filtration, providing cleaner intake air before it enters the gas turbine system.

Available filtration grades include ISO 29461 T10, T11 and T12. According to the supplied data, the corresponding minimum MPPS efficiencies are ≥85%, ≥95% and ≥99.5%. Rated airflow is 3,500–4,500 m³/h per element, while the initial pressure drop is 130–200 Pa. The normal operating temperature is ≤70°C.

These clearly stated filtration grades and MPPS values provide a more specific basis for product selection than using a general description such as "high efficiency." Buyers can compare the required filtration level with the actual airflow and resistance requirements of the existing intake system.

A higher filtration grade is only one part of gas turbine intake filter selection. The system still needs to maintain sufficient airflow, which means filtration area, pleat structure and internal airflow passages need to work together with the selected efficiency level.

The High Efficiency Inlet Air Filter can be used in combined-cycle power plants, urban and industrial pollution areas, coastal power stations, oil and gas facilities, and other operating environments where cleaner gas turbine intake air is required.

During specification, buyers should confirm filtration grade, rated airflow, initial pressure drop and actual installation dimensions together. This helps avoid selecting a filter only by efficiency while overlooking its effect on intake resistance.

Jiangsu Renhe has long-term experience in gas turbine intake filtration and air filtration products. The company has technical teams covering filter media development, product design and process optimization, together with experience in large gas turbine inlet filtration optimization and retrofit projects.

For replacement orders, filters can be developed according to the dimensions of an existing filter house, the target ISO 29461 grade, rated airflow and local environmental conditions. Original filter drawings or physical samples can also be used as a basis for matching.

OEM/ODM manufacturing is supported for equipment supply, customized products and long-term spare-filter purchasing.

Samples and technical specifications can be confirmed before mass production. The minimum order quantity for filter elements is 20 pieces. Standard cartridge-type products normally require 7–10 days for production, while customized products requiring new tooling need additional development time according to the actual structure.

Production photos or videos can be supplied during manufacturing. Every batch receives a 100% inspection before packing, and third-party inspection is accepted.

Export packaging can use cartons with three-plywood pallets or wooden cases according to filter dimensions. This packaging arrangement helps protect the high-efficiency media, frame and sealing areas during international transportation.
