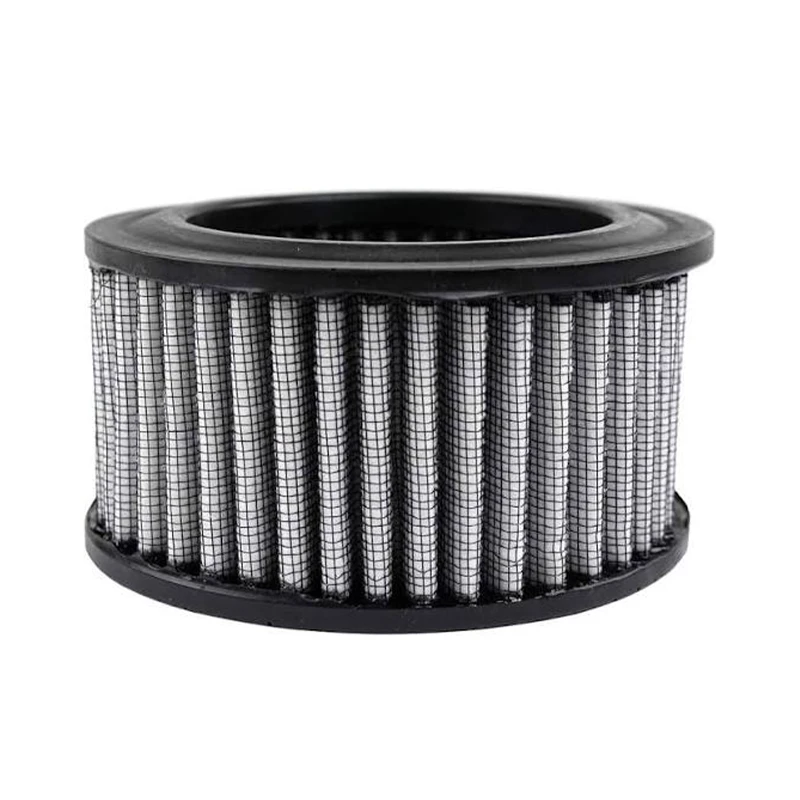

Air Intake Prefilter Element

The Air Intake Prefilter Element is normally installed before the main filters in a gas turbine intake system. Its primary function is to capture coarse particles, pollen, insects, fibers, larger dust particles and part of the incoming water droplets before they reach the downstream fine and high-efficiency filtration stages.

By removing these contaminants at the first stage, the prefilter reduces the particle load placed on more advanced filters further inside the intake system. This makes it particularly useful where the outside environment contains significant dust, vegetation particles, insects or other coarse airborne contaminants.

The available filtration grades cover ISO 29461 T2–T6. Rated airflow ranges from 2,000 to 4,500 m³/h per element. Common thicknesses include 48 mm, 100 mm and 102 mm. Filter media options include synthetic fiber and polyester composite materials.

Different grades and thicknesses can have different airflow and resistance characteristics, so these operating values should be confirmed according to the actual model rather than assumed from thickness alone.

The product can be supplied in panel, pleated, bag-type or removable filter-pad structures according to the intake system design.

Standard, hydrophobic and coalescing functional configurations are also available. In normal dry environments, a standard prefilter can be used for coarse-particle interception. In coastal, humid or rainy locations, hydrophobic or coalescing configurations can be considered to help handle part of the incoming moisture and droplets.

The Air Intake Prefilter Element is suitable for first-stage filtration in gas turbine intake systems, industrial turbines, large compressors and combined-cycle power plants. It can also be used in coastal, agricultural and high-dust regions where the intake air contains a relatively high load of coarse contamination.

Selection should consider not only the nominal filtration grade but also environmental humidity, particle loading, available frame dimensions and the downstream filtration arrangement.

Jiangsu Renhe has long-term activities in air filtration materials and gas turbine intake filtration products. The company has established intake-filter production capabilities and a technical team covering filtration technology, filter media and product design.

For replacement projects, buyers can provide the dimensions of the existing filter box, frame specification, original product thickness, installation direction and interface information. The product can then be matched to the existing intake system.

For new systems, the technical team can discuss filtration grade, environmental conditions and filter structure before confirming the configuration. OEM/ODM production and manufacturing according to technical drawings or prototypes are supported.

Where dimensions, media or structure need to be checked before volume purchasing, a sample can be discussed first. The supplied information gives a 7-day development period for customized samples.

Production photos or videos can be provided during manufacturing. Each finished product receives a 100% inspection before packing, and third-party inspection is accepted.

For international shipment, cartons with three-plywood pallets or wooden cases can be selected according to product structure. This helps protect the filter frame and media during transportation.

For scheduled replacement programs, an Air Intake Prefilter Element can be specified according to the actual filter housing, intake environment and filtration-stage requirements, giving buyers a clearer basis for recurring maintenance purchasing.
