Defined Filtration Grades for PM10, PM2.5 and PM1 Control

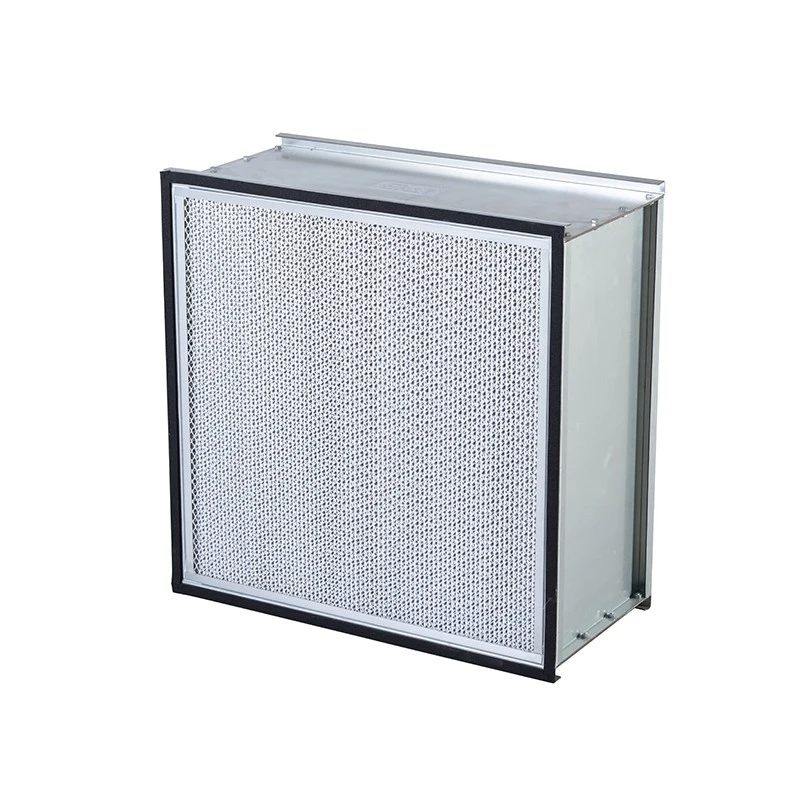

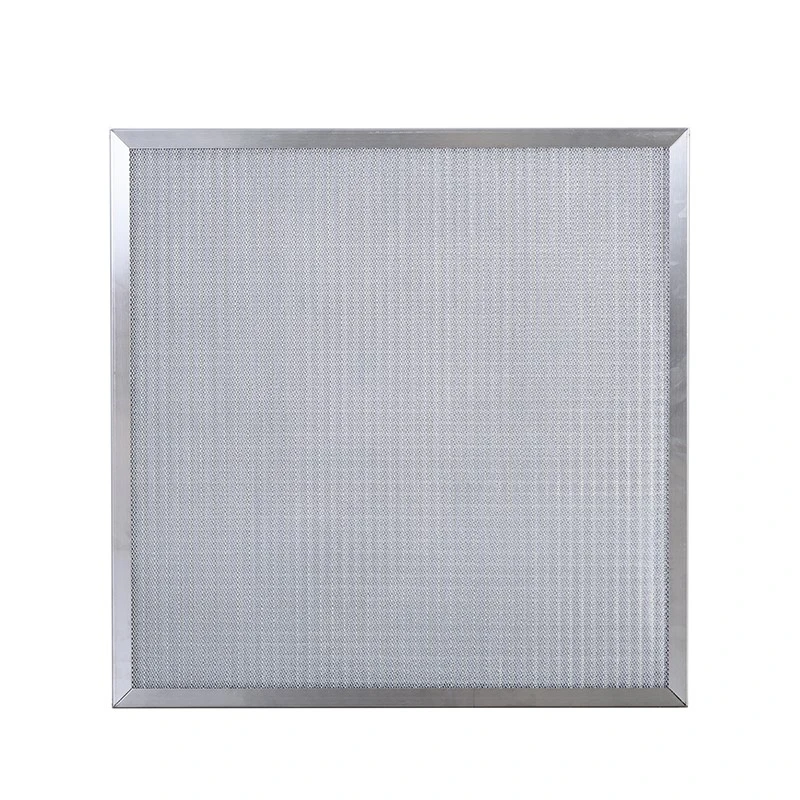

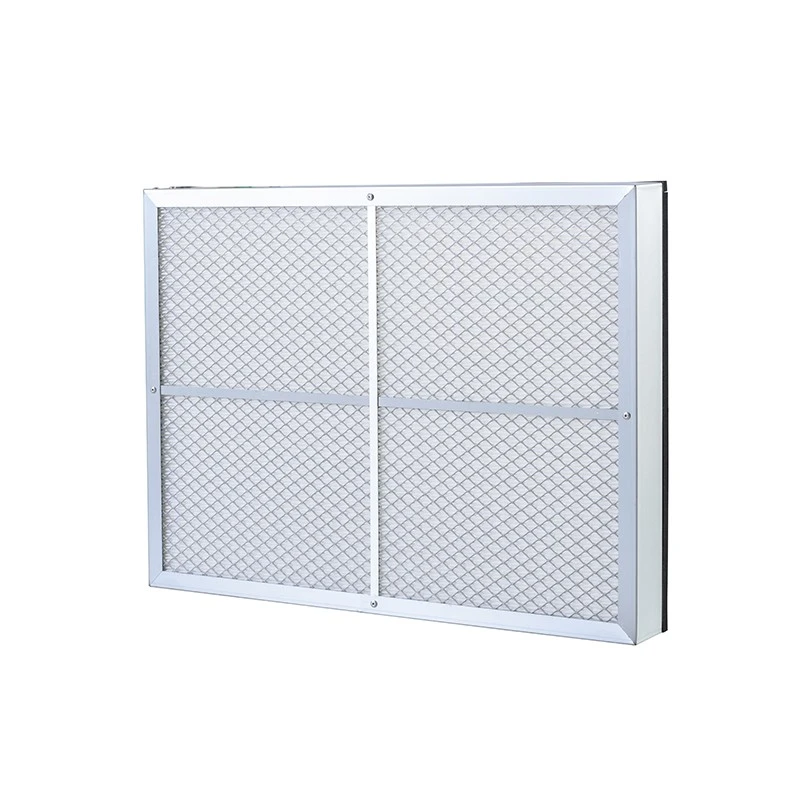

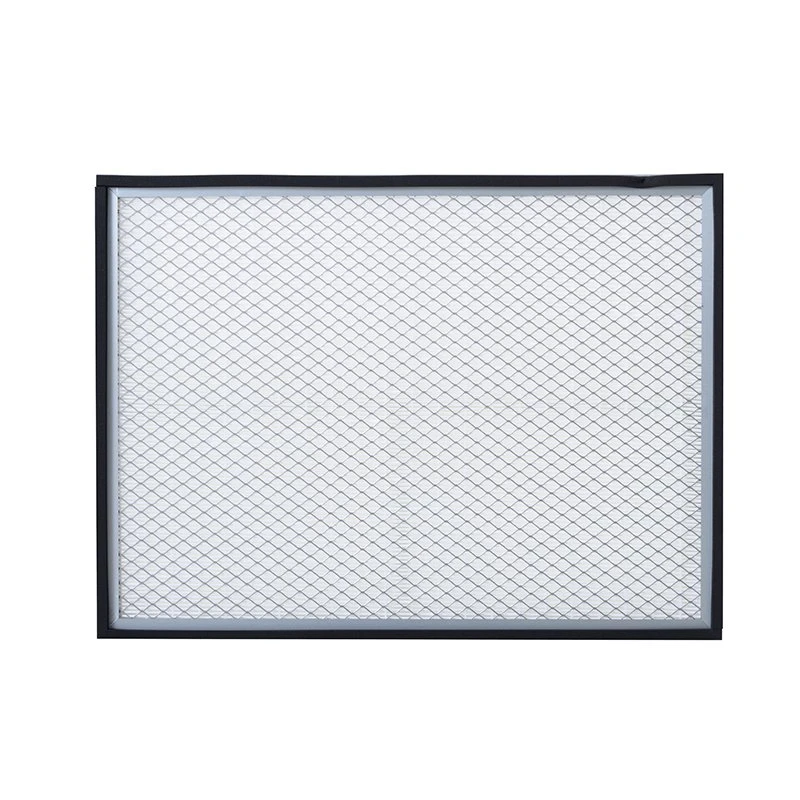

The Fine Particle Air Filter is mainly used in the medium or fine filtration stage of multi-stage gas turbine intake systems. It is intended to handle fine airborne particles in the PM10, PM2.5 and PM1 ranges before the air reaches later filtration stages.
Available filtration grades include ISO 29461 T7–T9. According to the supplied information, the minimum ePM1 efficiencies for T7, T8 and T9 are 50%, 70% and 85% respectively.
Rated airflow is 2,500–4,500 m³/h per element, while the initial pressure drop ranges from 80 to 180 Pa. Available filter media include synthetic fiber, glass fiber and composite materials.
These parameters give buyers a clearer basis for comparing filtration grade, fine-particle performance and airflow resistance within a multi-stage intake system.
Reducing the Particle Load on Final Filters
In a multi-stage gas turbine filtration system, fine filtration has an intermediate protective role. It reduces the amount of PM1 and other fine particles continuing toward the final filtration stage.
By lowering the particle load placed on downstream filters, the Fine Particle Air Filter can form an important part of a staged intake filtration arrangement.
Filtration media type, effective filtration area and pleat structure can be adjusted according to the target filtration performance and airflow requirement. The objective is to improve particle capture while controlling the initial pressure drop at rated airflow.
The product can be used in urban industrial areas, traffic-pollution environments, dusty locations, combined-cycle power stations, combined heat and power projects and other gas turbine multi-stage intake systems.
Environmental Conditions as a Selection Basis
Purchasing decisions should take local air pollution characteristics into account. Buyers need to confirm the target ISO 29461 grade, rated airflow per element and allowable resistance rather than selecting a filter only from one efficiency figure.
Jiangsu Renhe has worked in air filtration since 2004. Its intake-filter production line entered operation during 2009–2011, followed by continuing work in large gas turbine inlet filtration optimization and filter-material development.
The technical team covers filter-media development, product design and process optimization. For replacement projects, filters can be developed according to existing filter-house dimensions, original drawings, installation dimensions or a physical sample. OEM/ODM is also supported for equipment manufacturers and system-integration projects.
Samples, Production Control and Long-Term Purchasing
Samples or prototypes can be discussed before volume production. The listed development period for customized samples is 7 days, while sample availability depends on the specific product.
During production, photos or videos can be shared with the purchasing team. A 100% inspection is completed before packing, and third-party inspection is accepted.
International transportation can use cartons with three-plywood pallets or wooden cases to protect filter media, frames and sealing areas.
For turbine maintenance, intake-system upgrades and recurring spare-filter procurement, previously approved Fine Particle Air Filter dimensions, grades and structures can also provide a consistent basis for later repeat orders.
Product Specifications
|
Parameter |
Specification |
|
Filtration Grade |
ISO 29461 T7–T9 |
|
Minimum ePM1 Efficiency |
≥50%–85% |
|
Rated Airflow |
2,500–4,500 m³/h/element |
|
Initial Pressure Drop |
80–180 Pa |
|
Filter Media |
Synthetic fiber / glass fiber / composite media |
