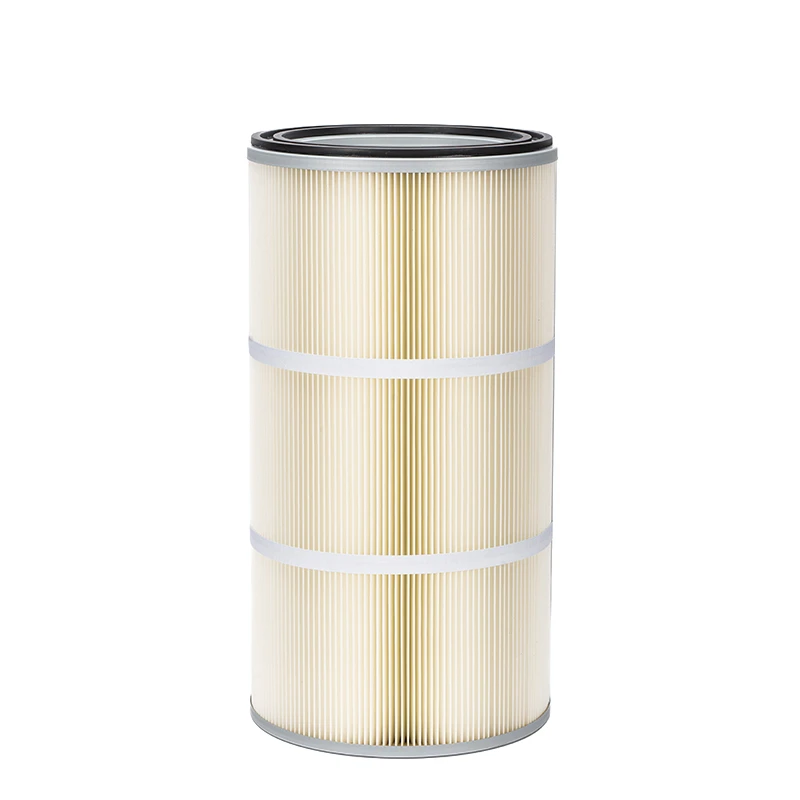

Polyester Media for General Dry Dust Filtration
The Polyester Dust Collector Filter Cartridge uses polyester spunbond nonwoven fabric as its main filtration medium. Polyester provides the mechanical strength and dimensional stability required for manufacturing a large pleated filtration surface, making it suitable for industrial dry dust collection systems using pulse-jet or reverse-air cleaning.
The cartridge provides a filtration area of 5–22 m² per piece and is available with outside diameters from 120 to 400 mm. The listed normal temperature range is 65–93°C.
Rather than using one polyester configuration for every application, the filter surface can be selected according to the dust environment. Standard polyester media is available for general dry industrial dust, while membrane or water- and oil-repellent surface treatments can be considered when the operating conditions require different surface characteristics.
Surface Treatment According to the Dust Condition
The choice of surface treatment affects where the cartridge can be used. Standard polyester media is intended for general dry dust. For fine particles, dust that is more difficult to release during cleaning, or environments where moisture can influence the filtration process, membrane or water- and oil-repellent treatment can be selected according to actual conditions.
Applications listed in the source include cement, mineral powder, machining, powder coating, metal processing, woodworking, food powders and general industrial dry dust filtration.
When selecting a Polyester Dust Collector Filter Cartridge, buyers should consider more than cartridge dimensions and total filtration area. Dust characteristics, operating temperature, filtration velocity and the cleaning method of the existing collector should also be confirmed so the media and cartridge structure correspond to the actual system.
Matching Original Cartridges and Non-Standard Equipment
Jiangsu Renhe entered the air filtration field through filter cartridge products and has continued developing filter media, pleated cartridges and filtration equipment. The company has teams for filter-media development and process optimization.
OEM/ODM production is supported. Cartridges can be manufactured according to customer technical drawings, an original filter cartridge or equipment dimensions. For non-standard dust collectors or equipment from different manufacturers, the outside diameter, cartridge length, end-cap design, sealing method and required filter-media treatment can be reviewed before production.
For large replacement orders, a sample can be confirmed first. Production can then follow the approved dimensions and material configuration, reducing the risk of receiving a batch that does not fit the existing collector.
Production Capacity, Inspection and Export Packing
The minimum order quantity is 20 cartridges, and standard production time is 7–10 days. If a custom structure requires a new mold, the listed mold-development period is approximately 30 days.
The supplied information gives a filter cartridge production capacity of 80,000 pieces per month. Production photos or videos can be provided during manufacturing. A 100% final inspection is carried out before packing, and third-party inspection is accepted.
For international shipment, cartons with three-plywood pallets or wooden cases can be used to protect pleated media, end caps and sealing areas during transportation. These supply arrangements make the Polyester Dust Collector Filter Cartridge suitable for equipment production, scheduled replacement and long-term spare-filter purchasing.
Product Specifications
|
Parameter |
Specification |
|
Filter Media |
Polyester spunbond nonwoven |
|
Filtration Area |
5–22 m²/cartridge |
|
Outside Diameter |
120–400 mm |
|
Normal Temperature Range |
65–93°C |
|
Surface Treatment |
Standard / membrane / water- and oil-repellent |
