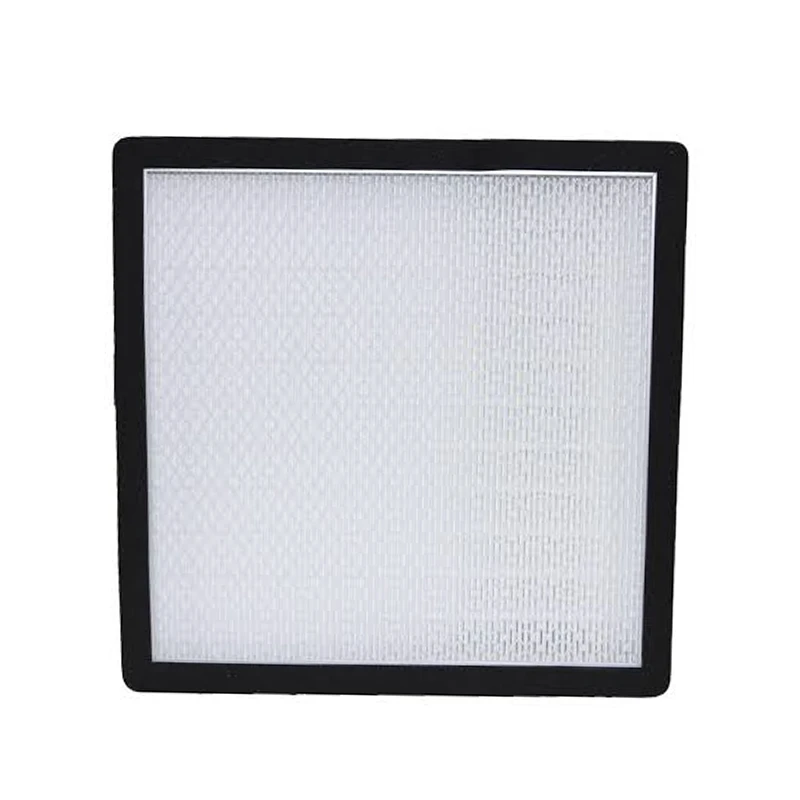

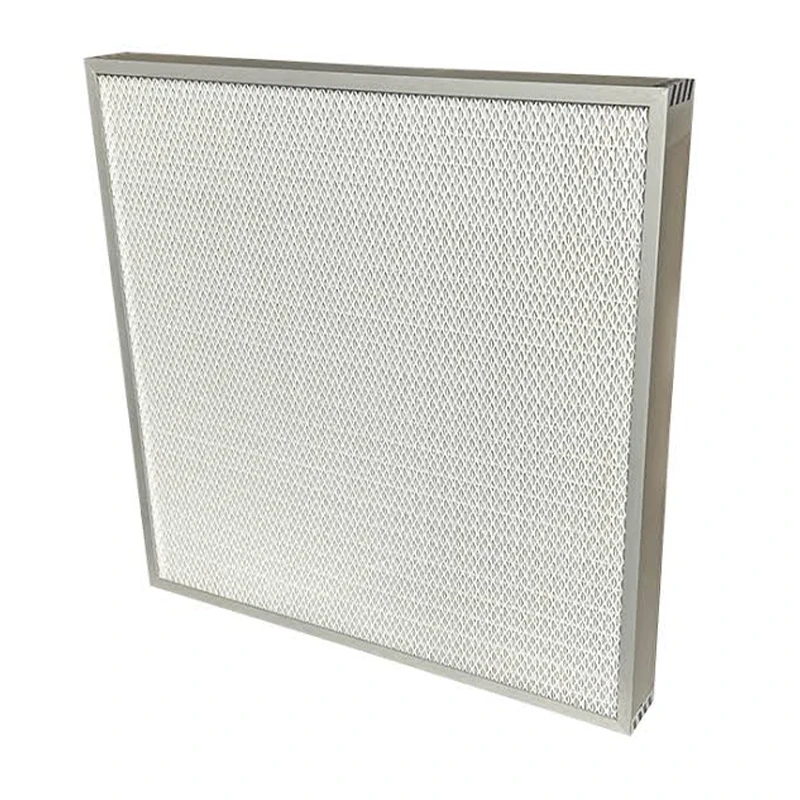

Terminal HEPA Panel Air Filter

The Terminal HEPA Panel Air Filter is installed at the final filtration position of a clean-air system, close to the controlled clean area. Its purpose is to complete high-efficiency particle filtration immediately before supply air enters the clean space. This arrangement reduces the length of downstream ductwork or equipment located after the final filter, helping limit the possibility of particles being introduced again after filtration.

The product can be configured in H13 or H14 grades. According to the supplied data, the MPPS efficiency range is ≥99.95%–99.995%. Rated airflow is 300–1,200 m³/h, while initial resistance is 60–180 Pa.
Actual product dimensions need to be matched to the terminal filter housing, ceiling module and installation interface rather than selected from filtration grade alone.

Because this filter is positioned at the end of the air-supply system, installation and sealing are important parts of product specification.

Available sealing configurations include PU sealing, Gel Seal and Knife Edge structures. These options allow the filter to be matched with different terminal housings and cleanroom ceiling systems.

The supplied information also notes that terminal HEPA housings can include on-site test interfaces for integrity testing after filter installation. For procurement projects, filtration grade and airflow should therefore be confirmed together with sealing type, airflow direction, external frame dimensions and the structure of the matching terminal housing.

The Terminal HEPA Panel Air Filter can be used in pharmaceutical clean areas, aseptic production lines, hospital clean areas, biological laboratories, semiconductor cleanrooms and precision electronics manufacturing environments.

Jiangsu Renhe has long-term activities in air filtration and purification products, with capabilities covering filtration materials, product design and equipment matching.

For new cleanroom projects, the product can be developed according to terminal supply boxes, ceiling openings or other installation dimensions. OEM/ODM manufacturing and production according to technical drawings are supported.

For replacement orders, the original filter dimensions and installation method can be used as the development reference. This approach helps buyers replace filters without making major changes to the existing cleanroom structure.

Before production, the required filtration grade, airflow, sealing configuration and structural dimensions can be confirmed with the technical team.

Samples can be discussed before mass production according to the actual project. The listed development time for a customized sample is 7 days.

Production photos or videos can be provided so buyers can follow manufacturing progress. A 100% inspection is carried out before packing, and third-party inspection is accepted.

Because the frame and sealing section need to remain intact for terminal installation, export packaging can use cartons with three-plywood pallets or wooden cases according to the filter specification.

For cleanroom construction and long-term replacement programs, the Terminal HEPA Panel Air Filter provides a clearly defined combination of H13/H14 filtration, 300–1,200 m³/h airflow and several sealing options that can be selected according to the actual terminal installation.
